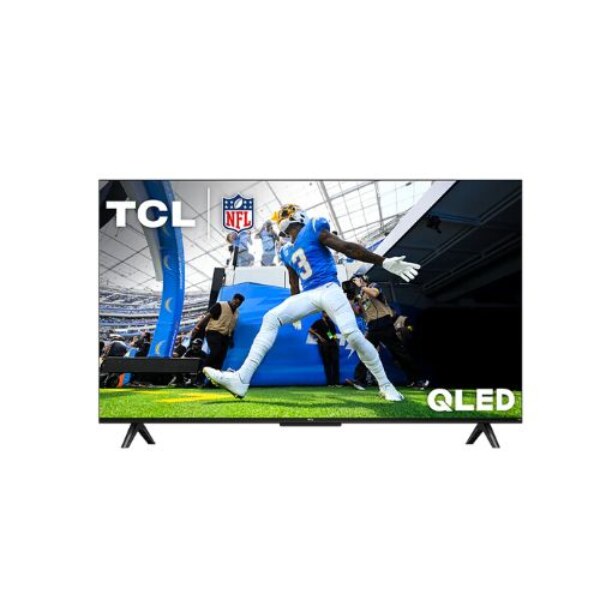

TCL Q5 75Q570G – Specifications

TCL Q5 75Q570G – Specifications

Brand: TCL
Category: Smart TV
Add to Compare

Display: 74.5 inch, VA, Direct LED
HDR: HDR10 ,HDR10+ ,Dolby Vision
Audio: 2 x 15 W,Dolby Atmos
OS: Google TV

Our Rating

The overall rating is based on review by our experts

7.8

Design 8 / 10
Display 8 / 10
Audio 7 / 10
Connectivity 8 / 10
Features 8 / 10

TCL Q5 75Q570G is a smart TV with a 75 inch screen. It features Quantum Dot technology to bring more vibrant color. It uses a high-brightness direct LED backlight, and support for Dolby Vision, HDR10+, and HLG allows for improved contrast and detail. The specs state that it has a 60 Hz refresh rate, with Motion Rate 240 to allow for smooth on-screen motion. It has Game Accelerator 120 with AMD FreeSync to optimize game play. It’s based on Google TV that provides smart TV features and apps.

Specifications

Model Information

Brand	TCL
Series	Q5
Model Number	75Q570G
Release Year	2023

Design

Build Material	Metal and plastic materials
Dimensions (without stand)	1668.78 x 960 x 88.9 mm
Dimensions (with stand)	1668.78 x 1026 x 345.4 mm
Weight (without stand)	23.5 kg
Weight (with stand)	23.8 kg
Color	Black

Display Specs

Screen Size	74.5 inch
Panel Type	VA
Resolution	3840 x 2160 pixels Ultra HD (UHD) / 4K / 2160p
Refresh Rate	48 Hz - 60 Hz
Panel bit depth	10 bits
Pixel density	59 ppi
Colors	1073741824 colors
Aspect Ratio	1.778:1
Brightness	-
Peak Brightness	-
Backlight	Direct LED
Dimming Zones	-
Contrast Ratio	-
HDR Support	HDR10 HDR10+ Dolby Vision HLG (Hybrid Log Gamma)
Minimum response time	-
Viewing Angle	178 °/178 ° (H/V)
Coating	Anti-glare/Matte

Processor & Performance

Processor	AiPQ 3.0 Engine
CPU	-
GPU	-
Ram	-
Storage	-
Interpolation technology	Motion Rate
Interpolation value	240

Ergonomics

VESA Mount	Yes,300 x 300 mm
Removable Stand	Yes
Height Adjustment	No
Pivot (Portrait/Landscape)	No
Swivel (Left/Right)	No
Tilt (Forward/Backward)	No

TV tuner

TV tuner

Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM

Audio

Speaker Output	2 x 15 W
Subwoofer	-
EQ Modes	Yes
Additional	2.0 CH 20 W Bluetooth Personal Audio Dolby Atmos Dolby Digital Plus DTS Virtual:X

Network

Wi-Fi Standards Supported	Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac)
Other Wireless Features	LAN Bluetooth Wi-Fi Direct DLNA

Ports & Interfaces

USB Ports	1 x USB 2.0 (Type-A; downstream) 1 x USB 3.0 (Type-A; downstream)
HDMI Ports	3 x HDMI 2.0
HDMI Features	Auto Low Latency Mode (ALLM) Enhanced Audio Return Channel (eARC) HDMI CEC (T-Link) High-bandwidth Digital Content Protection (HDCP) 2.3 Variable Refresh Rate (VRR)
Other Ports	1 x Ethernet RJ45 1 x Cable/Antenna In (F-type female) 1 x AV Composite In 3.5 mm jack 1 x Optical Audio Out 1 x 3.5 mm Audio Out

Smart Features

Operating System	Google TV
App Support	YouTube, Disney+,Netflix ,Prime Video etc.
Voice Assistant	Alexa built-in
Chromecast / AirPlay Support	Yes
Screen Mirroring	Yes
Other Features	3-sided bezelless design Alexa AMD FreeSync technology Apple Airplay 2 Apple HomeKit Apple TV+ Disney+ Dynamic Contrast Game Accelerator 120 Google Assistant HDR PRO+ MEMC (Motion Estimation Motion Compensation) Netflix Prime Video Quantum Dot Technology UltraWide Color Gamut UHD Upscaling V-Chip YouTube
