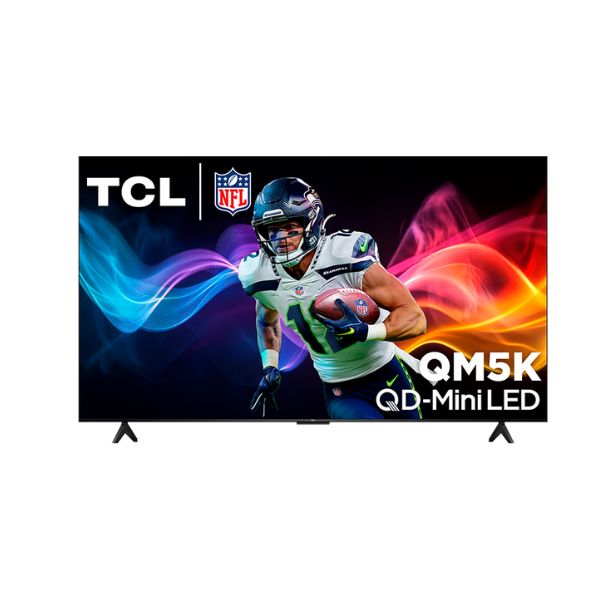

74.5″ TCL QM5K Series 75QM5K – Specifications

74.5″ TCL QM5K Series 75QM5K – Specifications

74.5″ TCL QM5K Series 75QM5K – Specifications

Brand: TCL
Category: Smart TV
Add to Compare

Display: 74.5 inch, HVA, Mini LED, 3840 x 2160 pixels
HDR: HDR10, HDR10+, Dolby Vision,
Audio: 2x10 W,Dolby Atmos
OS: Google TV

Our Rating

The overall rating is based on review by our experts

8.6

Design 8 / 10
Display 9 / 10
Audio 9 / 10
Connectivity 8 / 10
Features 9 / 10

Specifications

Model Information

Brand	TCL
Series	QM5K
Model Number	75QM5K
Release Year	2025

Design

Build Material	Metal and plastic materials
Dimensions (without stand)	1671 x 960.1 x 55.88 mm
Dimensions (with stand)	1671 x 1028.7 x 340.36 mm
Weight (without stand)	23 kg
Weight (with stand)	23.5 kg
Color	Black

Display Specs

Screen Size	74.5 in (inches)
Panel Type	HVA
Resolution	3840 x 2160 pixels
Refresh Rate	48 Hz - 60 Hz
Panel bit depth	10 bits (8 bits + FRC)
Pixel density	59 ppi (pixels per inch)
Colors	1073741824 colors, 30 bits
Aspect Ratio	1.778:1, 16:9
Brightness	500 cd/m²
Peak Brightness	890 cd/m²
Backlight	Mini LED
Dimming Zones	312
Contrast Ratio	7000 : 1
HDR Support	HDR10 HDR10+ Dolby Vision HLG (Hybrid Log Gamma)
Minimum response time	-
Viewing Angle	178 ° (degrees)
Coating	Anti-glare/Matte

Processor & Performance

Processor	AIPQ Pro
CPU	-
GPU	-
Ram	-
Storage	-
Interpolation technology	Motion Rate
Interpolation value	120

Ergonomics

VESA Mount	Yes,300 x 300 mm
Removable Stand	Yes
Height Adjustment	No
Pivot (Portrait/Landscape)	No
Swivel (Left/Right)	No
Tilt (Forward/Backward)	No

TV tuner

TV tuner

Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM

Audio

Speaker Output	2 x 10 W (
Subwoofer	1 x 20 W
EQ Modes	Yes
Additional	2.1 CH 40 W AI Built-in Mic Switch Bluetooth Personal Audio Dolby Atmos Dolby Digital+ Dolby TrueHD DTS Virtual:X DTS: X Down-firing Onkyo Sound System

Network

Wi-Fi Standards Supported	Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac)
Other Wireless Features	LAN Bluetooth Wi-Fi Direct DLNA

Ports & Interfaces

USB Ports	1 x USB 2.0 (Type-A; downstream) 1 x USB 3.0 (Type-A; downstream)
HDMI Ports	4 x HDMI 2.0
HDMI Features	Auto Low Latency Mode (ALLM) Enhanced Audio Return Channel (eARC) HDMI CEC (T-Link) High-bandwidth Digital Content Protection (HDCP) 2.3 Variable Refresh Rate (VRR)
Other Ports	1 x Cable/Antenna In (F-type female) 1 x Optical Audio Out 1 x Ethernet RJ45

Smart Features

Operating System	Google TV
App Support	YouTube, Disney+,Netflix ,Prime Video etc.
Voice Assistant	Alexa built-in
Chromecast / AirPlay Support	Yes
Screen Mirroring	Yes
Other Features	3-sided bezelless design Alexa AI 4K upscaling AI Clarity AI Contrast AI Colour AI HDR AI Motion AI Scene Alexa Ambient Mode Apple AirPlay 2 Apple HomeKit Apple TV+ Chromecast built-in Disney+ Energy-saving Mode Far-Field Voice interaction Game Accelerator 144 Game Master 2.0 with Game Bar Google Assistant HDR Pro+ MEMC (Motion Estimation Motion Compensation) Netflix Filmmaker Mode Prime Video Superwide Gameview QLED Ultra (Quantum Dot Color) V-Chip

Power Supply & Consumption

Voltage Compatibility	100 V - 240 V 50 Hz - 60 Hz
Power Consumption	0.5 W (Sleep)
